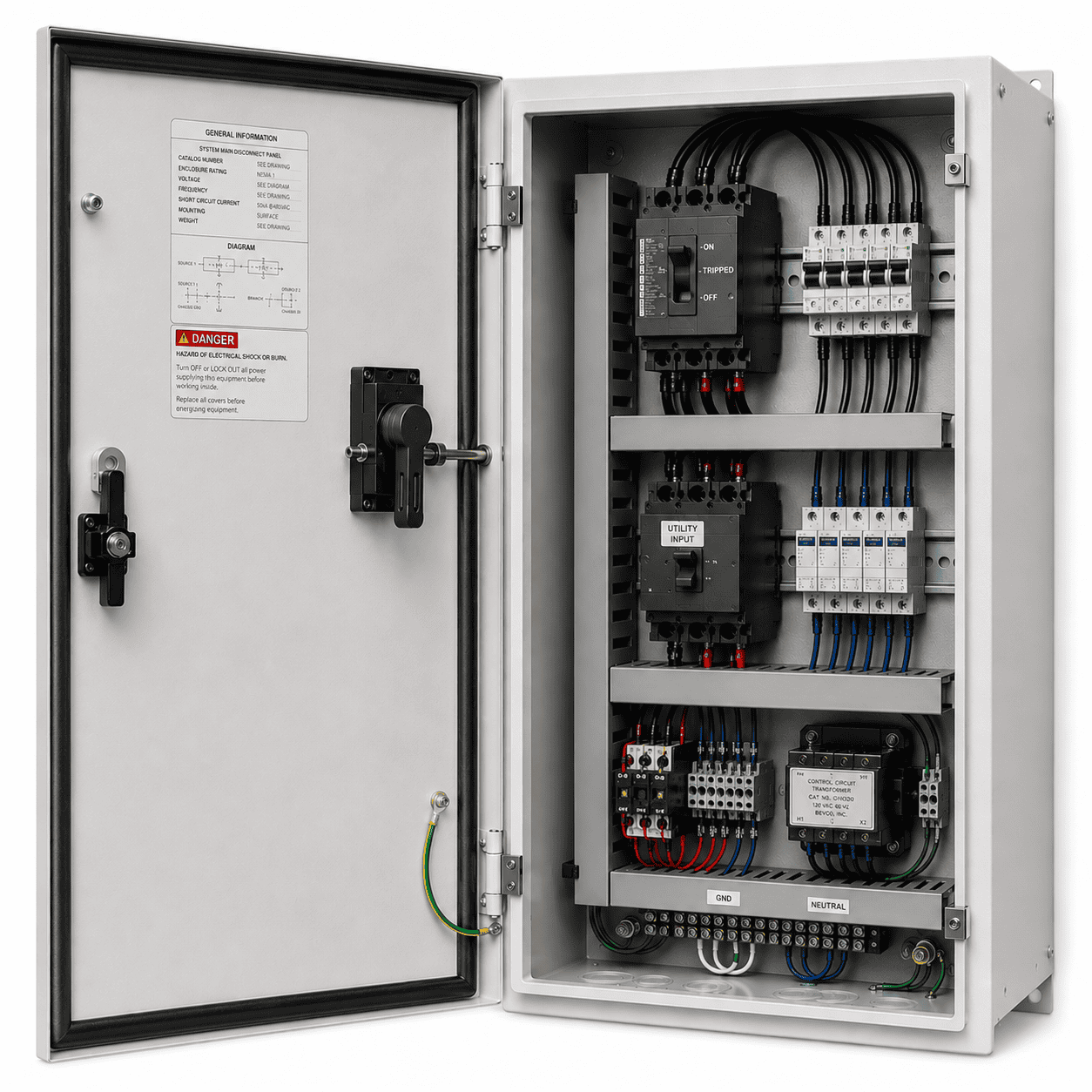

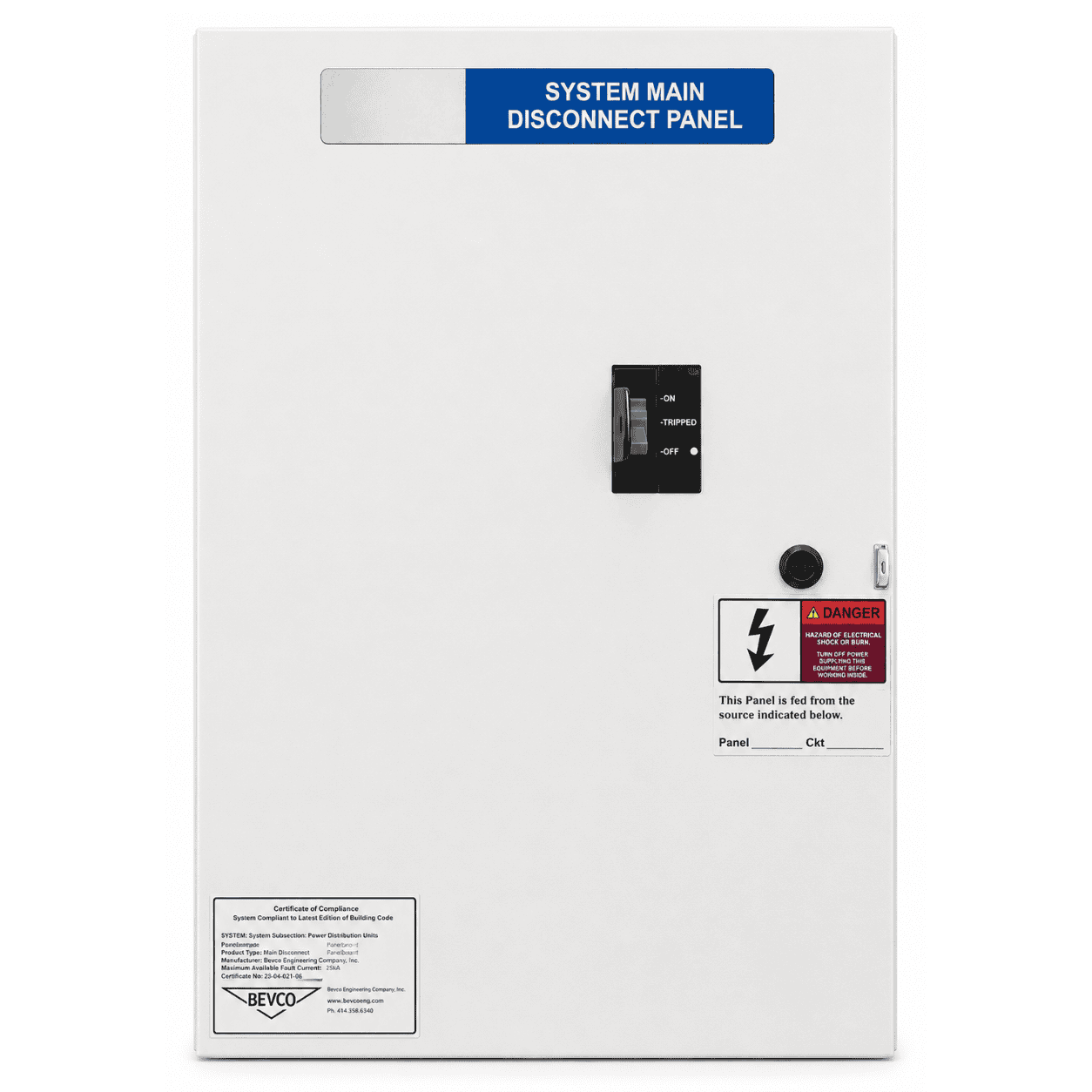

Nuclear Medicine Main Disconnect Panel
Bevco Engineering’s Nuclear Medicine Main Disconnect Panels provide emergency shutdown, overcurrent protection, and OSHA Lock Out/Tag Out provisions in an OSHPD pre-approved, stand-alone cabinet. The Main Disconnect Panel (MDP) serves as the local disconnect for the diagnostic imaging system and is available in multiple configurations to support PET, SPECT, and hybrid systems with CT or MRI scanners. Optional configurations include automatic reclosure after a power outage, integration of power for cooling equipment, a wide range of voltage and power options, and integral system status controls within the MDP.
The MDP is available in multiple configurations to meet the  needs of any PET or SPECT camera and hybrid system with CT and MRI scanners.
Emergency Power Off Capabilities
Choose the EPO operating method that best fits your application requirements.
Fail-Safe Under-Voltage Trip
Fail-Safe Under-Voltage Trip
- Opens the main circuit breaker when the EPO is pressed
- Provides low voltage protection from power sags
- Circuit Breaker needs to be reset after an EPO event or power sag
Traditional Shunt Trip
Traditional Shunt Trip
- Opens the main circuit breaker when the EPO is pressed
- Power to operate the shunt trip is derived inside the MDP
- Circuit breaker must be reset after an EPO event
Contactor-Based (No-Trip)
Contactor-Based (No-Trip)
- Opens a contactor to remove power from the system when an EPO is pressed
- Power is restored when the EPO is released; no Circuit Breaker reset required
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's Nuclear Medicine Main Disconnect Panels.
Installation & Configuration
- Single-point power connection to reduce installation time
- Surface or semi-flush mounting
- Higher SCCR ratings and custom configurations available
- International CE 380/400/415V designs available with adjustable 30mA RCD protection
Safety & Access Control
- Panel disconnect provides OSHA lock-out / tag-out provisions
- Supplied with remote red Emergency OFF guarded Push-to-Latch/Twist-to-Release push button, wall plate and nameplate
- Door has provisions for padlocking to control access
Standards & Compliance
- Standard configurations suitable for use in 25ka short-circuit current rated (SCCR) power systems
- UL and cUL listed, labeled, and tested; conforms to National Electric Code
- Seismic ICC-ES-AC156 shake tested approval per OSHPD requirements
Quality & Reliability
- Proven components and designs eliminate guesswork
- Standardized design and testing ensures high product quality and system reliability
- Factory wired and tested. All devices are selected for high reliability and long life
Support Safer Shutdown
Give your nuclear medicine imaging system a dedicated local disconnect with emergency power off, overcurrent protection, and lockout/tagout provisions. Bevco can help configure the panel around your suite’s electrical and operational needs.
