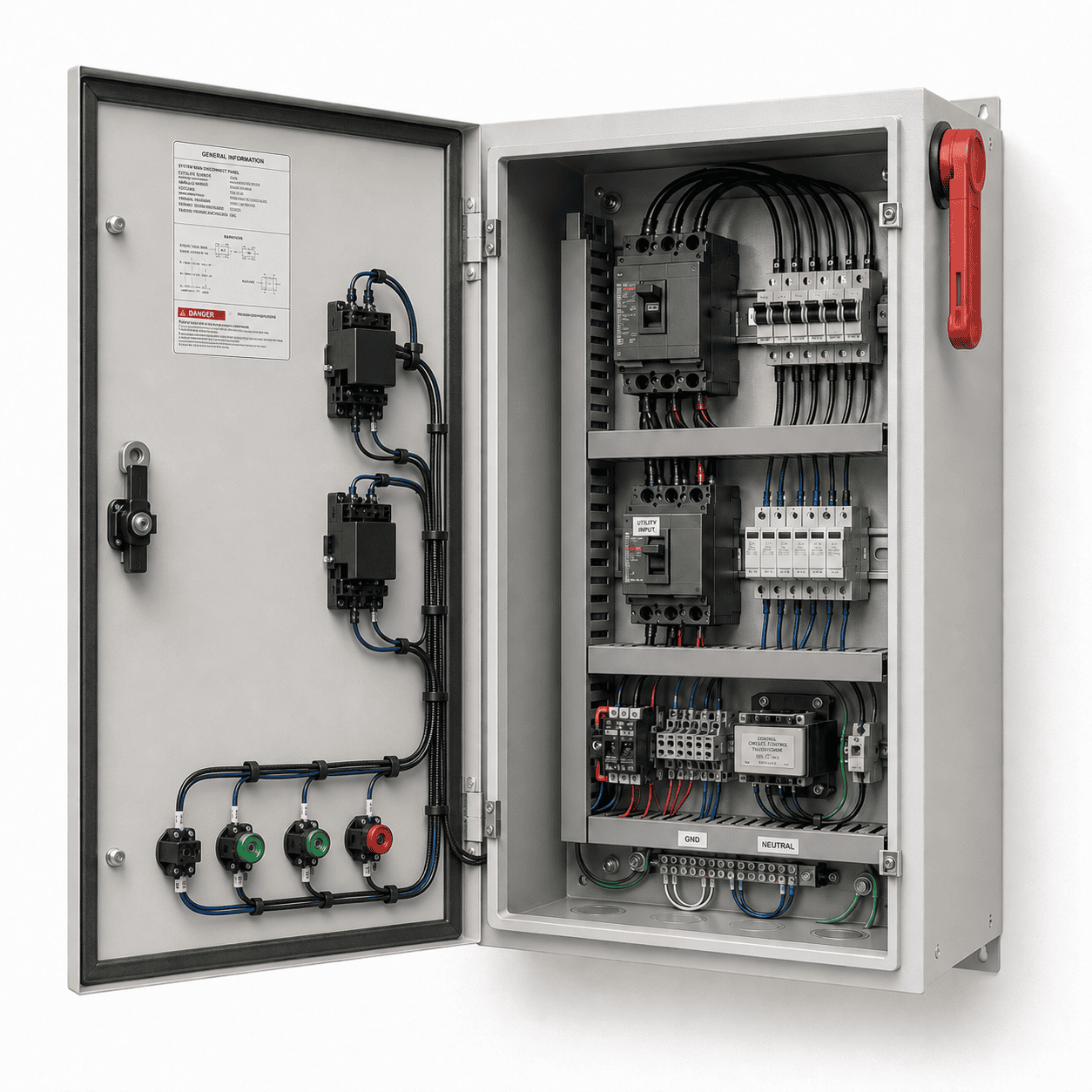

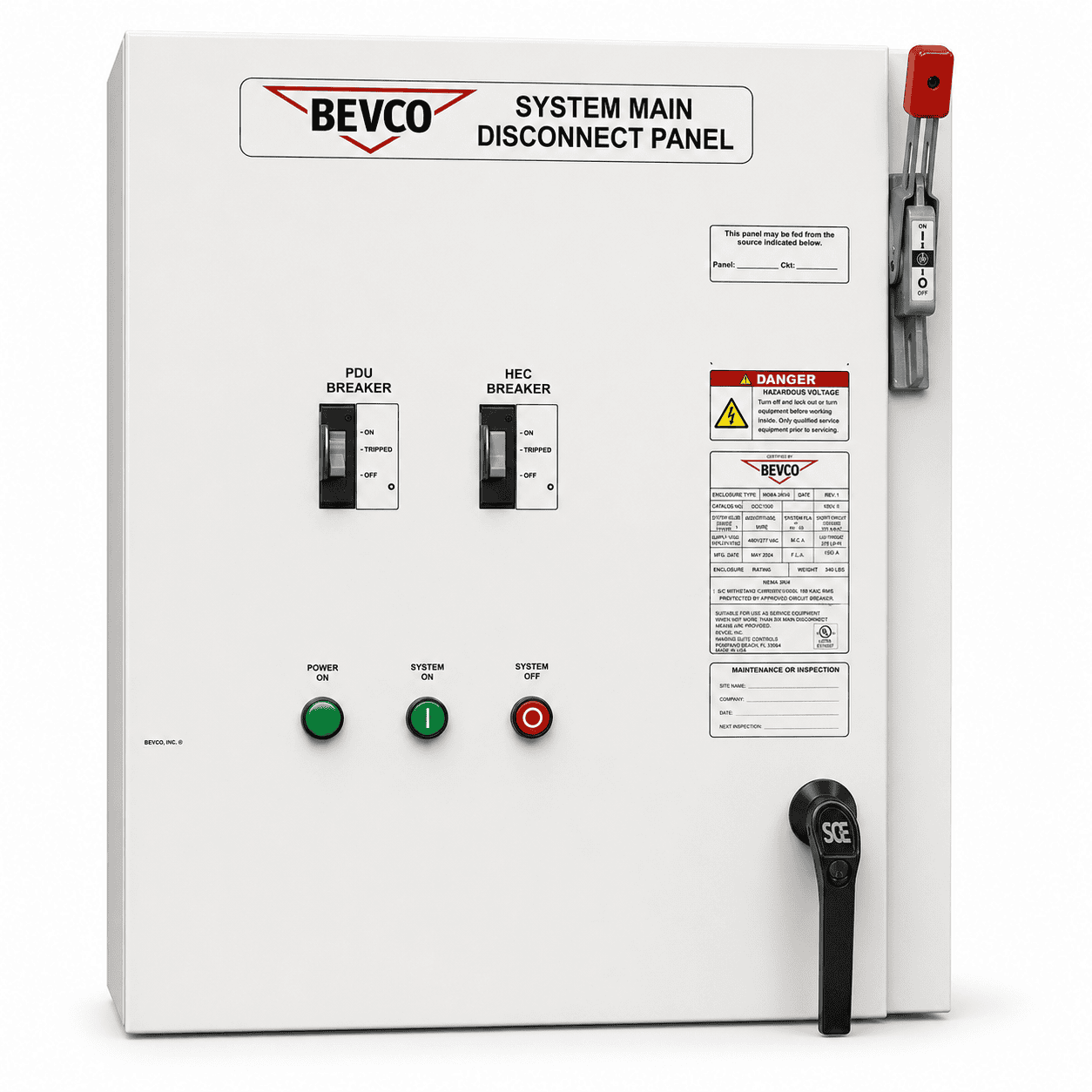

MRI Main Disconnect Panel
Bevco Engineering's MRI Main Disconnect Panels provide emergency shutdown, overcurrent protection, and OSHA Lock Out/Tag Out provisions in an OSHPD pre-approved, stand-alone cabinet. The Main Disconnect Panel (MDP) serves as the local disconnect for the MRI imaging system and features a contactor-based No-Trip Emergency Power Off (EPO) design that removes power without tripping a circuit breaker, eliminating the need for a breaker reset when power is restored.
A wide range of voltage and power options to support the smallest magnets to the largest 7T magnets.
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's CT Main Disconnect Panels.
Installation & Configuration
- Single-point power connection to reduce installation time
- Surface or semi-flush mounting
- Higher SCCR ratings and custom configurations available
- International CE 380/400/415V designs available with adjustable 30mA RCD protection
Safety & Access Control
- Panel disconnect provides OSHA lock-out / tag-out provisions
- Supplied with remote red Emergency OFF guarded Push-to-Latch/Twist-to-Release push button, wall plate and nameplate
- Door has provisions for padlocking to control access
Standards & Compliance
- Standard configurations suitable for use in 25ka short-circuit current rated (SCCR) power systems
- UL and cUL listed, labeled, and tested; conforms to National Electric Code
- Seismic ICC-ES-AC156 shake tested approval per OSHPD requirements
Quality & Reliability
- Proven components and designs eliminate guesswork
- Standardized design and testing ensures high product quality and system reliability
- Factory wired and tested. All devices are selected for high reliability and long life
Basic Panel Configuration:
MRI Main Disconnect Panels are available in one standard configuration: Part Number MR480-090-BB, designed for 400/415/480V, 50/60 Hz, three-phase power, with a 90A main MR circuit, 20A chiller circuit, and nominal enclosure dimensions of 24" H × 15" W × 9" D.
In addition to the standard panel, Bevco Engineering offers custom MRI Main Disconnect Panel configurations to accommodate specific voltage, amperage, mounting, and installation requirements for any MRI suite.
The simplified diagram shows how incoming three-phase power is routed through the MRI Main Disconnect Panel to both the MRI Power Distribution Unit and the chiller, with automatic restart after a power failure and remote emergency OFF capability.
Plan MRI Power Control
Every MRI suite has specific power, safety, and installation requirements. Bevco Engineering can help identify the right MRI Main Disconnect Panel configuration based on voltage, amperage, SCCR rating, EPO method, mounting style, chiller amperage, and project specifications.
