Cath-Lab Main Disconnect Panels

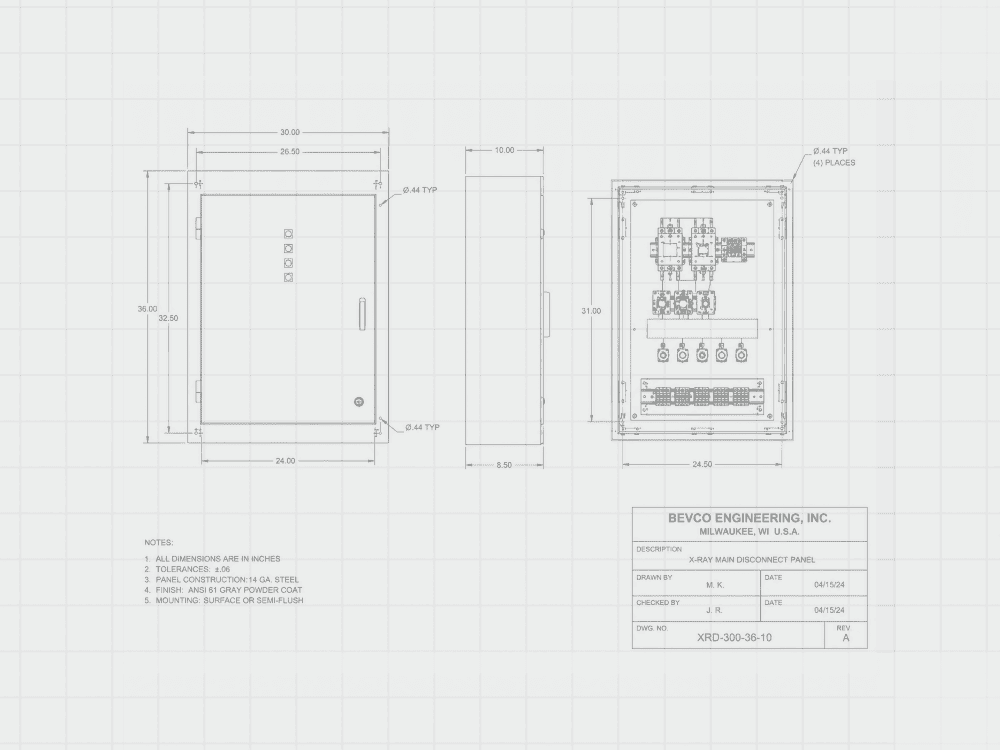

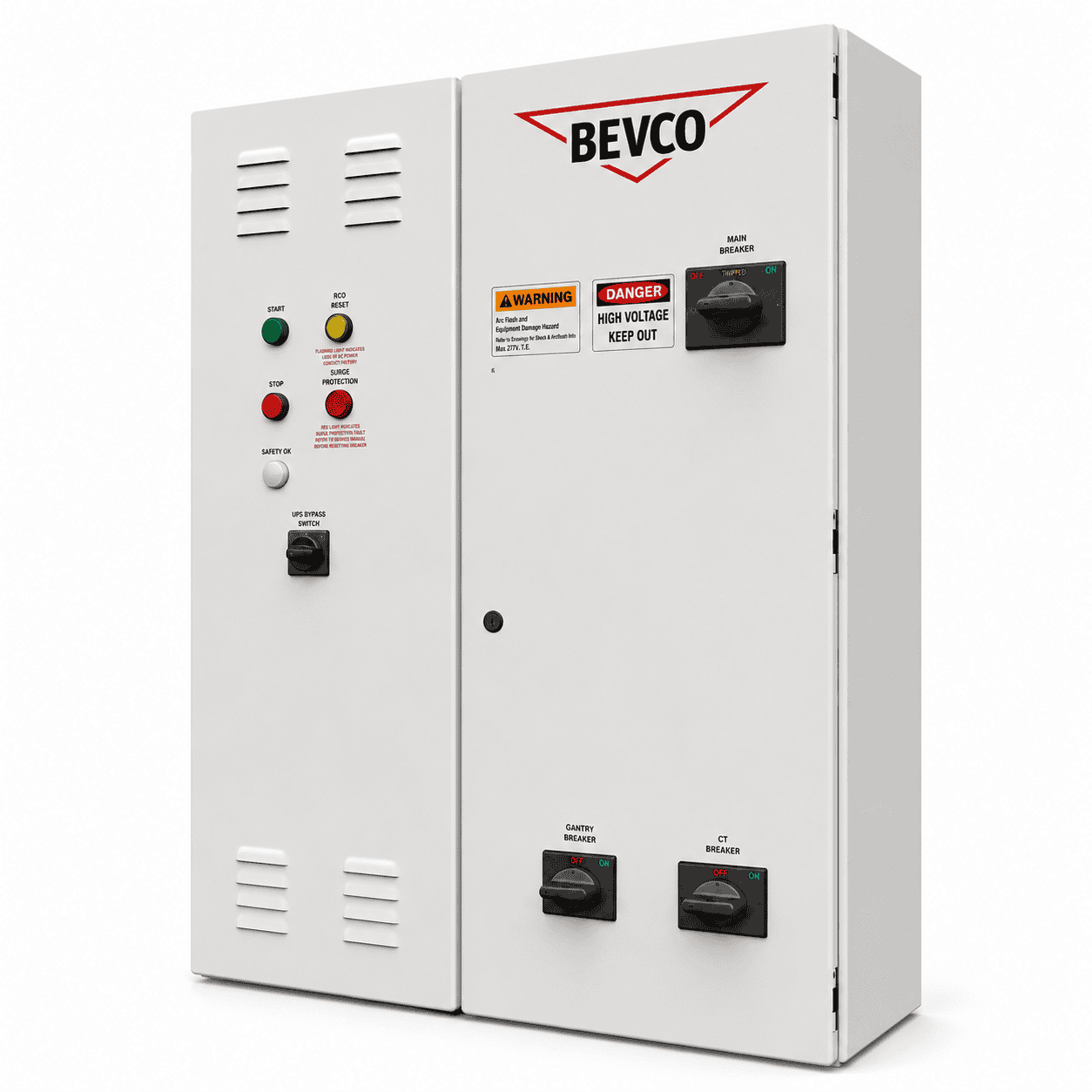

Bevco Engineering’s Cath Labs Main Disconnect Panels provide emergency shutdown, overcurrent protection, and OSHA Lock Out/Tag Out provisions in an OSHPD pre-approved, stand-alone cabinet. The Main Disconnect Panel (MDP) serves as the local disconnect for the diagnostic imaging system and provides power for the X-Ray generator and control cabinet. Available in multiple configurations to support Cath Lab requirements, optional configurations include automatic reclosure after a power outage, integration of power for cooling equipment, a wide range of voltage and power options, and integral X-Ray ON, X-Ray Ready, and room light controls within the MDP.
Available in multiple configurations to meet the needs of any Cath Lab.
Emergency Power Off Capabilities
Choose the EPO operating method that best fits your application requirements.
Fail-Safe Under-Voltage Trip
Fail-Safe Under-Voltage Trip
- Opens the main circuit breaker when the EPO is pressed
- Provides low voltage protection from power sags
- Circuit Breaker needs to be reset after an EPO event or power sag
Traditional Shunt Trip
Traditional Shunt Trip
- Opens the main circuit breaker when the EPO is pressed
- Power to operate the shunt trip is derived inside the MDP
- Circuit breaker must be reset after an EPO event
Contactor-Based (No-Trip)
Contactor-Based (No-Trip)
- Opens a contactor to remove power from the system when an EPO is pressed
- Power is restored when the EPO is released; no Circuit Breaker reset required
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's Cath Lab Main Disconnect Panels.
Installation & Configuration
- Single-point power connection to reduce installation time
- Surface or semi-flush mounting
- Higher SCCR ratings and custom configurations available
- International CE 380/400/415V designs available with adjustable 30mA RCD protection
Safety & Access Control
- Panel disconnect provides OSHA lock-out / tag-out provisions
- Supplied with remote red Emergency OFF guarded Push-to-Latch/Twist-to-Release push button, wall plate and nameplate
- Door has provisions for padlocking to control access
Standards & Compliance
- Standard configurations suitable for use in 25ka short-circuit current rated (SCCR) power systems
- UL and cUL listed, labeled, and tested; conforms to National Electric Code
- Seismic ICC-ES-AC156 shake tested approval per OSHPD requirements
Quality & Reliability
- Proven components and designs eliminate guesswork
- Standardized design and testing ensures high product quality and system reliability
- Factory wired and tested. All devices are selected for high reliability and long life
Plan Cath Lab Power Control
Provide local disconnect, emergency shutdown, overcurrent protection, and lockout/tagout provisions for your Cath Lab system. Bevco can help match the panel configuration to your voltage, SCCR, mounting, and installation needs.
