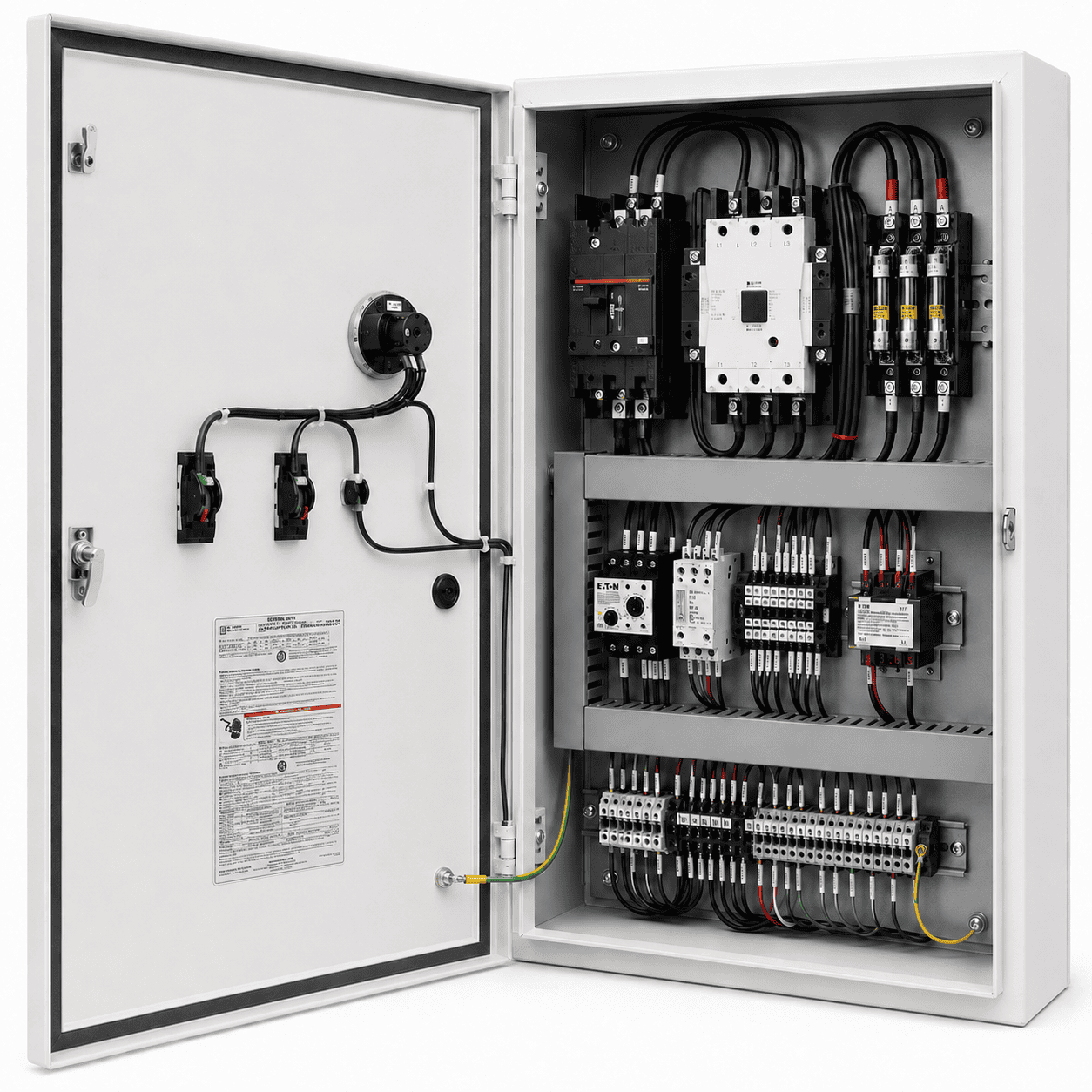

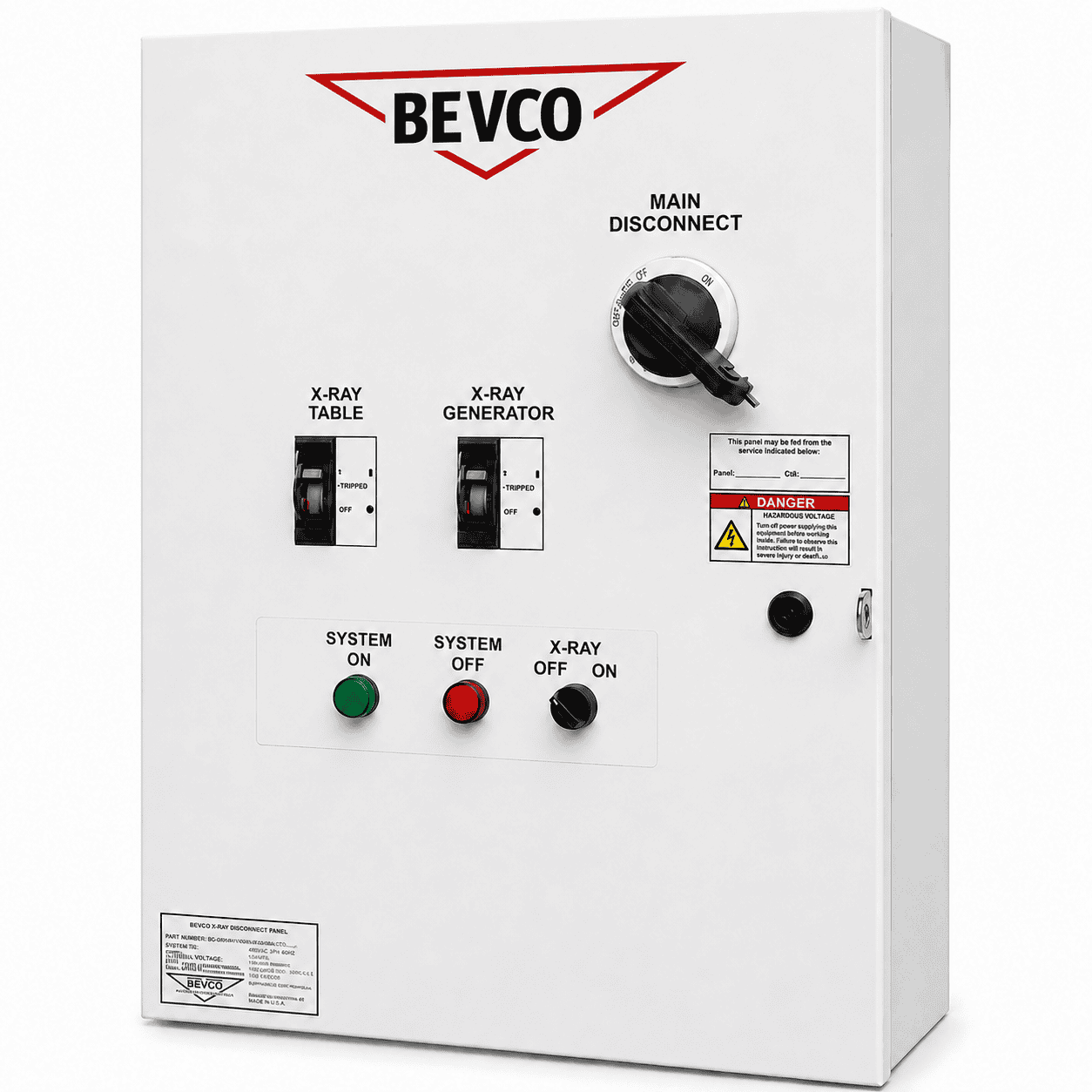

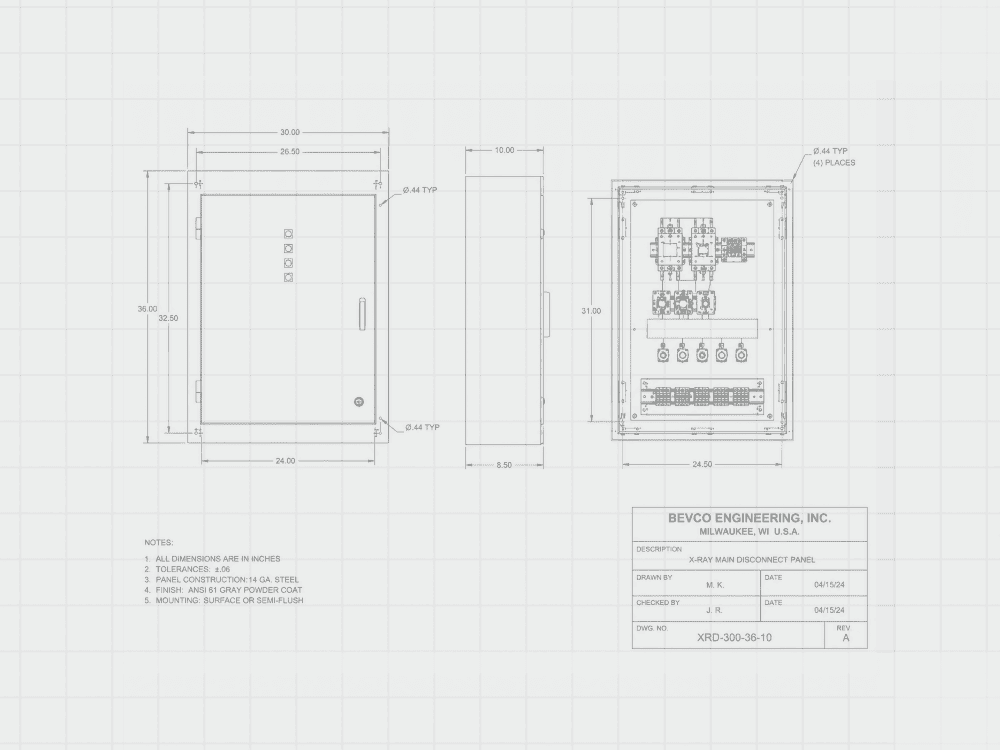

X-Ray Main Disconnect Panel
Bevco Engineering's X-Ray Main Disconnect Panels provide emergency shutdown, overcurrent protection, and OSHA Lock Out/Tag Out provisions in an OSHPD pre-approved, stand-alone cabinet. The Main Disconnect Panel (MDP) serves as the local disconnect for the diagnostic imaging system and is available in multiple configurations to meet the needs of any X-Ray suite. Optional configurations include automatic reclosure after a power outage, allowing the system to come back online without maintenance intervention, as well as integral Room Lighting and In-Use Warning Light control.
Available in multiple configurations to meet the needs of any X-Ray suite.
Emergency Power Off Capabilities
Choose the EPO operating method that best fits your application requirements.
Fail-Safe Under-Voltage Trip
Fail-Safe Under-Voltage Trip
- Opens the main circuit breaker when the EPO is pressed
- Provides low voltage protection from power sags
- Circuit Breaker needs to be reset after an EPO event or power sag
Traditional Shunt Trip
Traditional Shunt Trip
- Opens the main circuit breaker when the EPO is pressed
- Power to operate the shunt trip is derived inside the MDP
- Circuit breaker must be reset after an EPO event
Contactor-Based (No-Trip)
Contactor-Based (No-Trip)
- Opens a contactor to remove power from the system when an EPO is pressed
- Power is restored when the EPO is released; no Circuit Breaker reset required
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's X-Ray Main Disconnect Panels.
Installation & Configuration
- Single-point power connection to reduce installation time
- Surface or semi-flush mounting
- Higher SCCR ratings and custom configurations available
- International CE 380/400/415V designs available with adjustable 30mA RCD protection
Safety & Access Control
- Panel disconnect provides OSHA lock-out / tag-out provisions
- Supplied with remote red Emergency OFF guarded Push-to-Latch/Twist-to-Release push button, wall plate and nameplate
- Door has provisions for padlocking to control access
Standards & Compliance
- Standard configurations suitable for use in 25ka short-circuit current rated (SCCR) power systems
- UL and cUL listed, labeled, and tested; conforms to National Electric Code
- Seismic ICC-ES-AC156 shake tested approval per OSHPD requirements
Quality & Reliability
- Proven components and designs eliminate guesswork
- Standardized design and testing ensures high product quality and system reliability
- Factory wired and tested. All devices are selected for high reliability and long life
Support Safer Startups
Every X-ray room has specific power, safety, and installation requirements. Bevco Engineering can help identify the right Main Disconnect Panel configuration for your X-ray suite, including EPO method, voltage requirements, SCCR rating, mounting style, and optional room control features.
