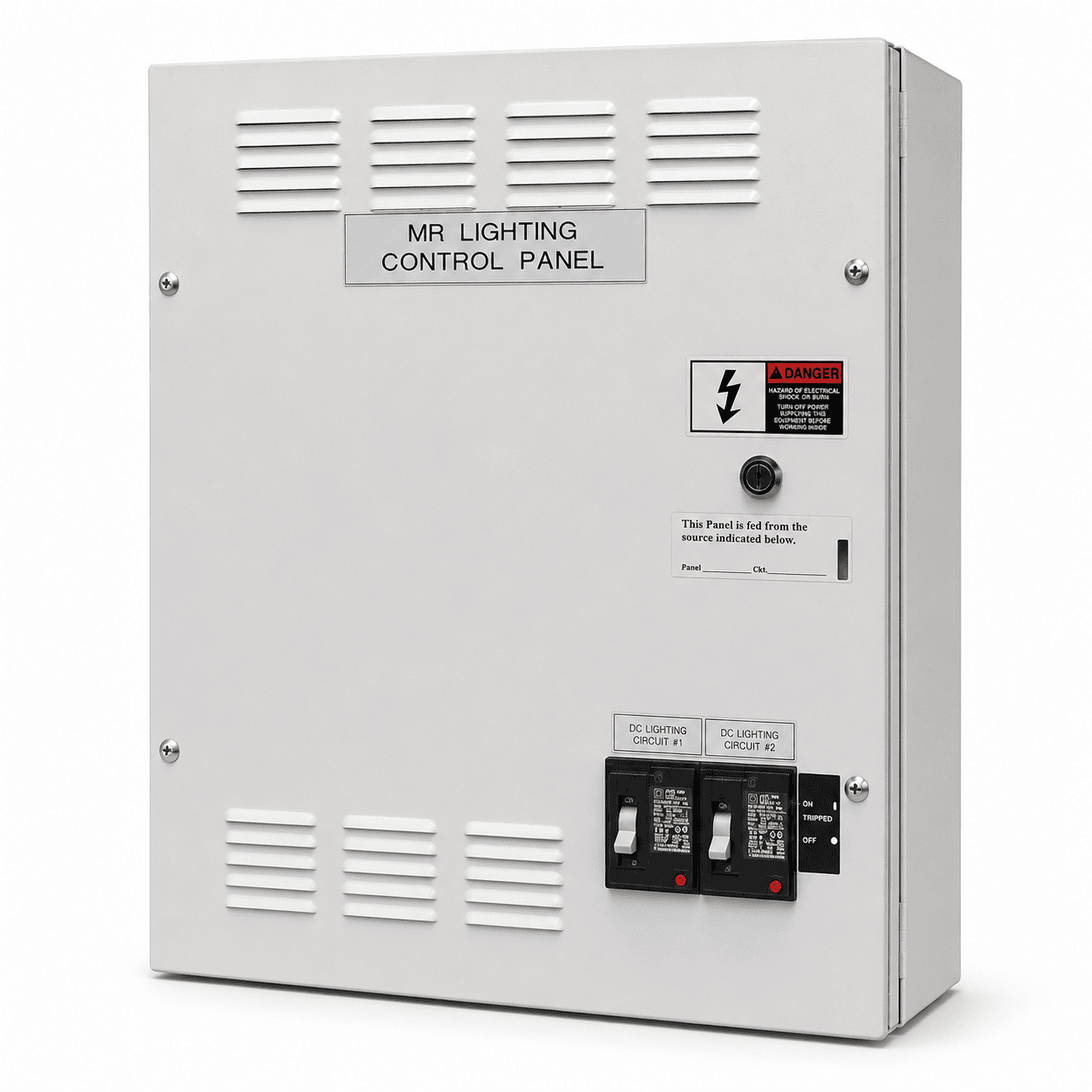

MRI DC Lighting Controllers

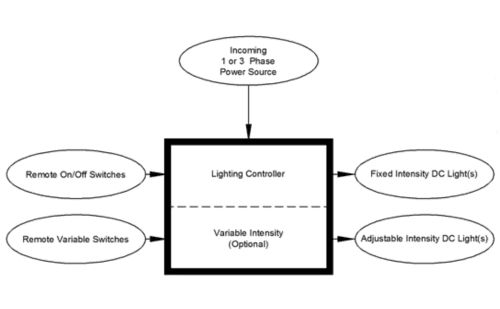

Bevco Engineering’s MRI DC Lighting Controllers convert incoming AC power to DC voltage to support lighting inside MRI magnet rooms. These controllers provide lighting control for existing ambient lighting fixtures, allowing patient-area lighting to be dimmed for a more comfortable imaging environment.
Because MRI suites rely on copper shielding to help protect equipment from RFI and EMI, standard AC lighting can create interference that may contribute to image distortion. Bevco’s DC Lighting Controllers provide a reliable DC power source for magnet room lighting, with standard constant-output models and optional variable-intensity models available.
Standard controllers are available with single-phase or three-phase incoming power and multiple current ranges. Custom MRI DC Lighting Controllers can also be designed and built in-house to match specific AC voltage, DC voltage, output, wattage, mounting, and installation requirements.
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's MRI DC Lighting Controllers.
Application & Configuration
- Compatible with all manufacturers' equipment
- Multiple current ranges to fit your application
- Surface or semi-flush mounting
- High short-circuit current ratings and a variety of custom configurations are available
Standards & Ratings
- Standard configurations are suitable for use in 25kA short-circuit rated power systems
- UL and cUL listed, labeled, and tested; conforms to National Electric Code
- Made in the USA
Support & DocumentationÂ
- Technical support before, during, and after installation provided by Bevco's experienced design team
- Installation and operation manuals included
Quality & ReliabilityÂ
- Quality components and proven designs eliminate guesswork
- Factory testing guarantees high product quality and system reliability
Basic MRI DC Lighting Controller Configurations:
The table below outlines common DC Lighting Controller configurations available from Bevco for MRI suite applications.
In addition to the standard controllers, Bevco Engineering offers custom MRI DC Lighting Controller configurations to accommodate specific voltage, amperage, short-circuit current rating, mounting, and installation requirements for any MRI suite.
|
Basic Part Number
|
Incoming Voltage
|
Amperage @ 115 VDC
|
Output Circuits
|
Height
|
Width
|
Depth
|
|---|---|---|---|---|---|---|
|
DC120-10-BB
|
120V 1-Phase
|
10
|
1
|
24"
|
15"
|
9"
|
|
DC240-10-BB
|
240V 1-Phase
|
10
|
1
|
24"
|
15"
|
9"
|
|
DC240-20-BB
|
240V 1-Phase
|
20
|
1
|
24"
|
15"
|
9"
|
|
DC208-10-BB
|
208V 3-Phase
|
10
|
1
|
24"
|
15"
|
9"
|
|
DC208-20-BB
|
208V 3-Phase
|
20
|
1
|
24"
|
15"
|
9"
|
|
DC208-30-BB
|
208V 3-Phase
|
30
|
2
|
24"
|
15"
|
9"
|
|
DC208-40-BB
|
208V 3-Phase
|
40
|
2
|
24"
|
15"
|
9"
|
Power Your MRI Lighting Properly
Support magnet room lighting with a DC Lighting Controller configured around your MRI suite’s voltage, current range, output, and installation requirements. Bevco Engineering can help provide a standard or custom controller designed for your lighting application.
