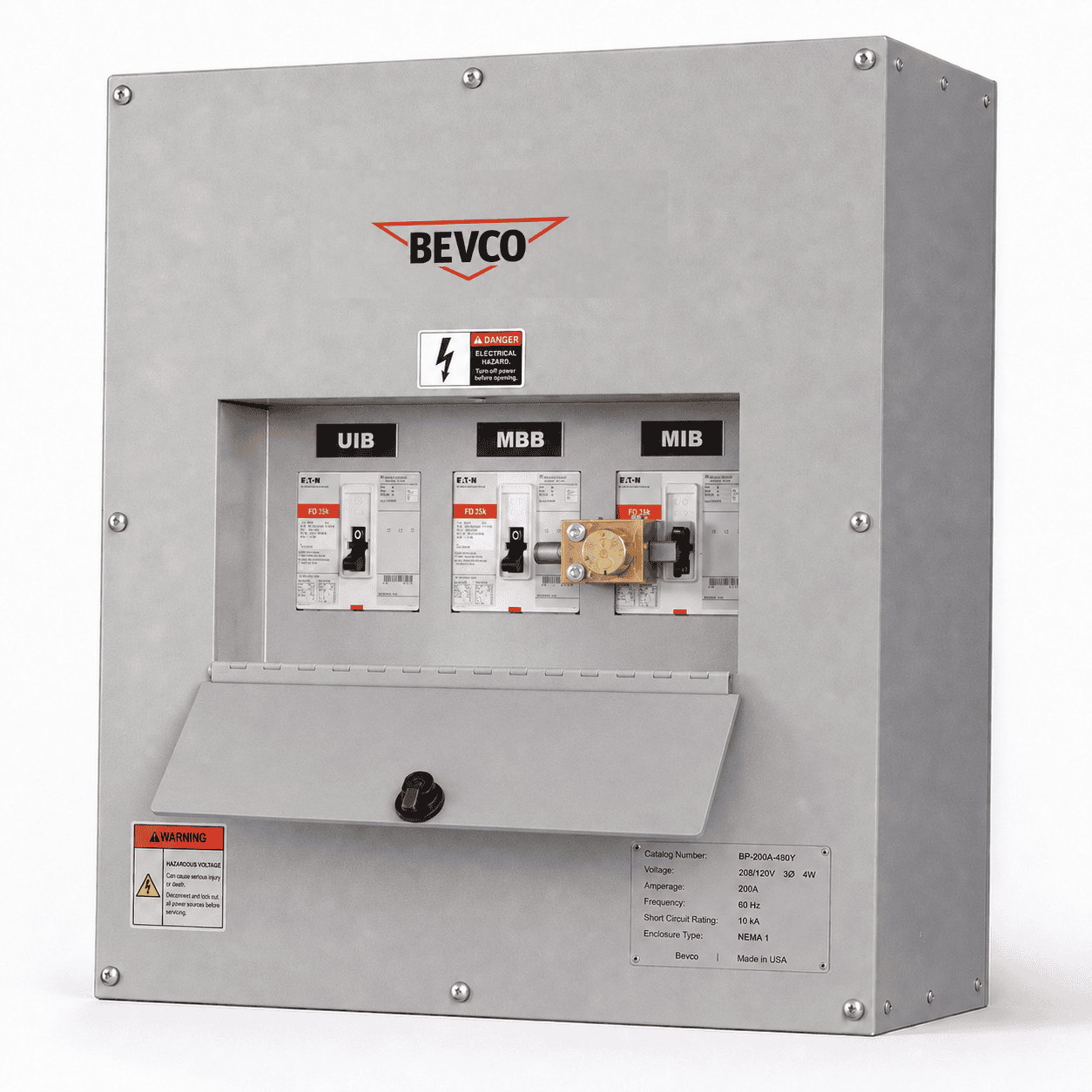

UPS Bypass Maintenance Panels
Bevco Engineering’s UPS Maintenance Bypass Panels isolate the uninterruptible power supply during routine maintenance or emergency service while maintaining power to the imaging system. In normal operation, the UPS remains online and provides power to the diagnostic imaging equipment; in maintenance bypass mode, the UPS can be taken offline, locked out, and safely shut down for service.
These panels are available for X-Ray, MRI, CT, and PET-CT imaging applications and are compatible with equipment from all manufacturers. Bevco can provide a bypass panel based on the make and model of your system, with standard configurations available as well as custom options for project-specific voltage, amperage, mounting, and installation requirements.
Custom UPS Maintenance Bypass Panels can also be designed and manufactured in-house for unique imaging suite requirements, including configurations with multiple load breakers to feed multiple imaging systems.
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's UPS Bypass Maintenance Panels.
Protection & IsolationÂ
- UPS input and output breakers provide branch circuit overcurrent protection
- Meets disconnection, isolation, and OSHA Lock Out/Tag Out (LOTO) provisions
- Includes neutral and ground bars
UPS Control & Interlocks
- Panels provide contacts to signal the UPS to switch to static bypass mode
- Circuit breakers are fitted with Kirk-Key interlocks to prevent catastrophic damage to imaging systems and UPS equipment
Ratings & ComplianceÂ
- 25kA short-circuit current rating or higher when specified
-
UL and cUL listed, labeled, and tested; conforms to National Electric Code
-
Made in the USA
Installation & Reliability
- Reduce installation time by providing a pre-designed and tested system, eliminating the need to mount and wire numerous individual components
- Factory testing ensures high product quality and reliability
- Installation and operations manuals are included
Basic UPS Maintenance Bypass Panel Configurations:
The table below outlines common UPS Maintenance Bypass Panel configurations available from Bevco for X-Ray, MRI, CT, and PET-CT applications. These configurations provide a starting point for selecting a panel based on imaging suite power requirements.
In addition to the standard panels, Bevco Engineering offers custom X-Ray, MRI, CT, and PET-CT UPS Bypass Panel configurations to accommodate specific voltage, amperage, mounting, and installation requirements for any imaging suite.
|
Basic Part Number
|
kVA Rating
|
Amperage @ 480V 3PH
|
Height
|
Width
|
Depth
|
|---|---|---|---|---|---|
|
UB100-120
|
100 kVA
|
120A
|
24"
|
15"
|
9"
|
|
UB150-180
|
150 kVA
|
180A
|
24"
|
15"
|
9"
|
|
UP225-270
|
225 kVA
|
270A
|
24"
|
15"
|
9"
|
|
UB300-360
|
300 kVA
|
360A
|
30"
|
24"
|
9"
|
|
UB100-600
|
500 kVA
|
600A
|
30"
|
24"
|
9"
|
System-Matched UPS Bypass Panel Configurations:
The table below outlines common system-matched UPS Bypass Panel configurations available from Bevco. These configurations provide a starting point for selecting a bypass panel based on imaging system power requirements.
Listed configurations are common options. A wide variety of voltage, short-circuit current rating, and amperage combinations can be accommodated based on MRI suite requirements.
|
Basic Part Number
|
kVA Rating
|
Amperage
|
Height
|
Width
|
Depth
|
|---|---|---|---|---|---|
|
CT480-090-BB
|
150 kVA
|
90A
|
24"
|
15"
|
9"
|
|
CT480-110-BB
|
300 kVA
|
110A
|
30"
|
24"
|
9"
|
|
CT480-125-BB
|
500 kVA
|
125A
|
30"
|
24"
|
9"
|
Simplify UPS Maintenance
Keep imaging systems powered while safely isolating the UPS for maintenance or emergency service. Bevco Engineering can help provide a UPS Maintenance Bypass Panel configured around your imaging system, power requirements, and installation needs.
