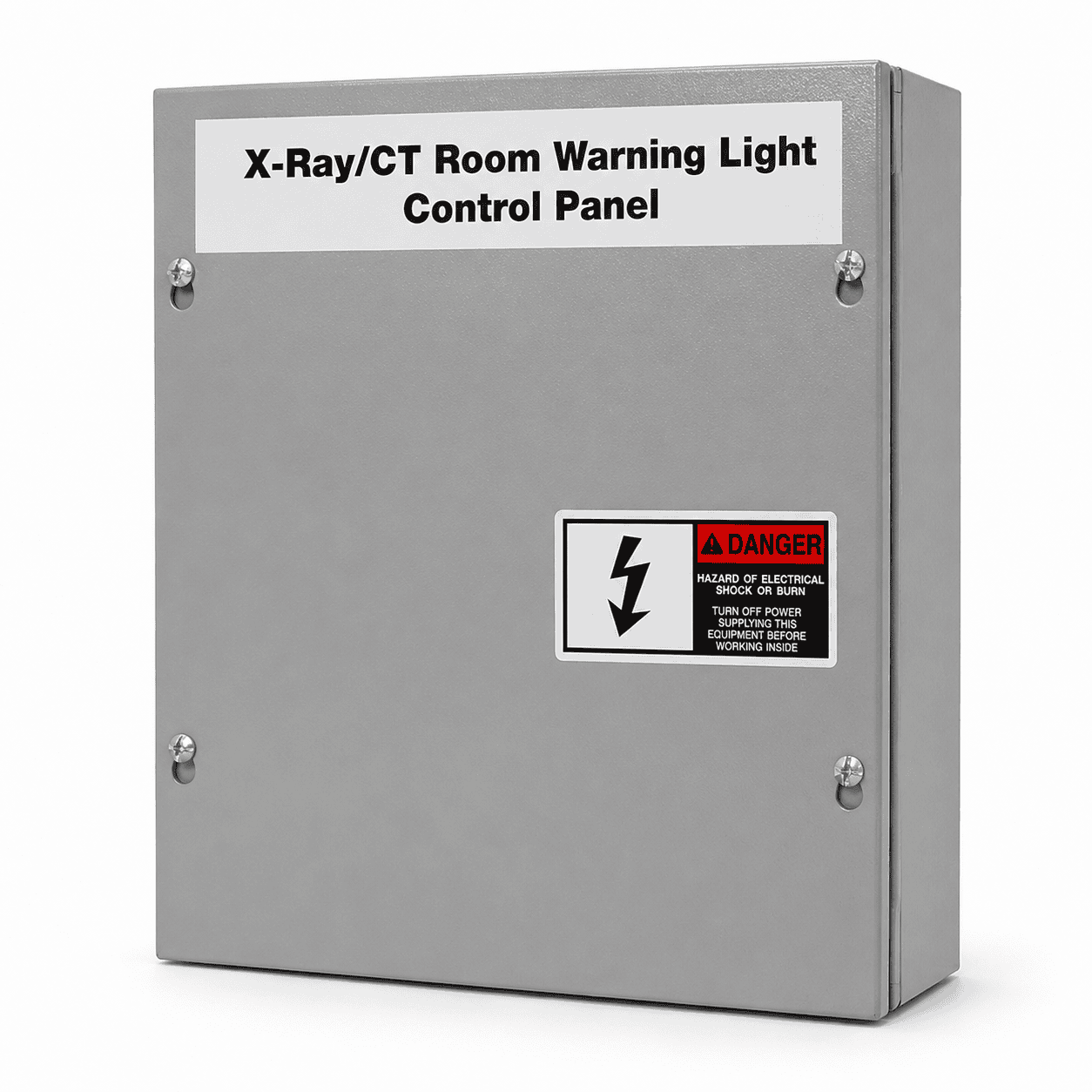

In-Use Warning Light Controllers
Bevco Engineering’s In-Use Warning Light Controllers provide safe, low-voltage control of warning lights and room lighting for imaging suite applications. These panels help improve safety during service and maintenance by eliminating hazardous 120V warning light circuits from system control panels.
These panels are available for CT, PET-CT, nuclear-CT, MRI, PET-MRI, cardiology, mammography, oncology, surgical imaging, and X-Ray imaging suites. Bevco can provide a standard controller configuration or design a custom panel to meet project-specific voltage, amperage, mounting, and installation requirements.
For applications requiring room lighting control, the -RL option provides fully integrated room lighting operation with two-level control using an included foot-operated switch.
Technical Features & Options
The features below outline common installation, safety, compliance, and configuration details available for Bevco's In-Use Warning Light Controllers.
Application & SupportÂ
- Available for CT, PET-CT, nuclear-CT, MRI, PET-MRI, cardiology, mammography, oncology, surgical imaging, & X-Ray imaging suites
- Technical support before, during, and after installation provided by Bevco’s experienced design team
Control & Installation
- Provide safe, low voltage control of warning lights and room lighting
- Optional 3-way switching provides for multiple switch locations
- Designed for wall-mounting or installation in space above drop ceilings
Standards & RatingsÂ
- UL and cUL listed, labeled, and tested; conforms to National Electric Code
- Standard configurations are suitable for use in 10kA short-circuit current rated power systems
- Optional high short-circuit current ratings are available
- Made in the USA
Quality & ReliabilityÂ
- Quality components and designs eliminate guesswork
- Factory testing guarantees product quality and reliability
- Installation & operation manuals are included
Basic Panel Configuration
In-Use Warning Light Controllers are available in one standard configuration: Part Number RW120-10-BB, designed for 120V or 277V, 50/60 Hz power, with 10A amperage and nominal enclosure dimensions of 12" H × 12" W × 6" D.
In addition to the standard panel, Bevco Engineering offers custom In-Use Warning Light Controller configurations to accommodate specific voltage, short-circuit current rating, amperage, mounting, and installation requirements for imaging suite applications.

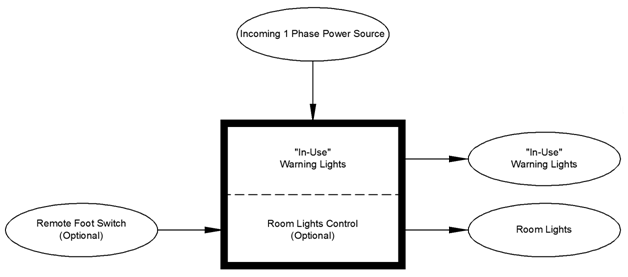

The simplified diagram shows how incoming single-phase power is routed through the In-Use Warning Light Controller to support in-use warning lights, with optional room lights control and optional remote foot switch operation.
Plan Safer Room Controls
From warning light operation to optional two-level room lighting control, Bevco Engineering can provide an In-Use Warning Light Controller built around your imaging suite requirements.
